6000W High Precision Fully Automatic Fiber Laser Welding Machine with Gantry Motion Structure for Square Li Ion Battery Packs

All Category

電池の付属品

連絡ください

Ms. Naomi Zhang

cheebo@126.com

+86 199 2880 7536

Contact Now

6000W High Precision Fully Automatic Fiber Laser Welding Machine with Gantry Motion Structure for Square Li Ion Battery Packs

Brand Name:	CHEEO
MOQ:	1
価格:	$10,000-11,000

Detail Information

Product Description

Detail Information

起源の場所:

中国広州

出力電力:

6000W

レーザーパワー:

1500W/2000W/3000W/4000W/6000W

溶接速度:

10〜100mm/s

位置の精度:

±0.05mm

レーザー波長:

1080

調整周波数:

30-5kHz

調節可能な力:

10~100%

再配置精度:

±0.01mm

迅速な位置決め速度:

1000mm/秒（xyaxis）、500mm/秒（Zaxis）

ビーム品質:

<1.4㎡

電力安定性:

≦3％

レーザーフォーカスフォーカル:

F=180mm

最高の機械化のサイズ:

800*600mm/1000*800

全面的なパワー消費量:

3.5KW ((2000W) /5.5KW ((3000W) /8KW ((4000W) /10KW ((6000W)

全体的な次元:

L1343XW1454XH22235mm

ハイライト:

6000W Fiber Laser Welding Machine

High Precision Battery Laser Welding Machine

Gantry Motion Structure Laser Welding Equipment

Product Description

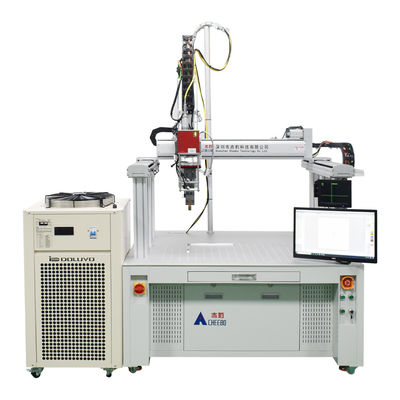

New Fiber Laser Welding Machine - Fully Automatic Square Li-Ion Battery Pack Laser Welding System

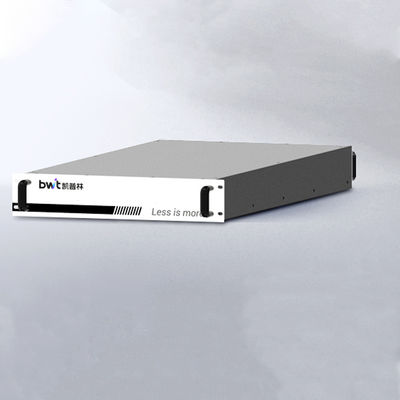

This advanced fiber laser welding system integrates key components including fiber optic continuous laser, gantry motion structure, high-power mirror welding head, water cooling system, and PC control system. Capable of performing precise welding of any planar geometric shape (points, lines, circles), it delivers efficient, safe, and stable high-power fiber laser welding performance, particularly optimized for lithium battery applications.

Key Features:

Utilizes advanced fiber laser technology specifically designed for high reflective materials (aluminum)
Proprietary gantry machine tool design ensures exceptional rigidity and stability
High beam quality, reliability, and low operating costs make it ideal for lithium-ion welding
Long-life gantry dual-drive motion platform with large welding range
Precision guide rail transmission with high-response servo motors for accuracy and speed
Produces fine weld spots with deep penetration, minimal taper, and smooth surfaces
User-friendly PC industrial computer with intuitive CNC programming system
Adjustable laser power with low energy consumption and minimal maintenance
Optional CCD visual positioning and automatic focal length measurement systems

Technical Specifications:

Laser Power	1500W/2000W/3000W/4000W/6000W	Welding Speed	10-100mm/s
Position Accuracy	±0.05mm	Laser Wavelength	1080
Regulating Frequency	30-5KHZ	Adjustable Power Range	10-100%
Repositioning Accuracy	±0.01mm	Rapid Positioning Speed	1000mm/sec (XY axis), 500mm/sec (Z axis)
Coolant System	External water cooling	Operating Mode	Continuous/Modulation
Beam Quality	<1.4㎡	Power Stability	≦3%
Laser Output Mode	CW/PWM	Maximum Machining Size	800600mm/1000800mm
Laser Focusing Focal Length	F=180mm	CCD Positioning Accuracy	0.01mm (Optional)
Fiber Core	20um/50pm/100pm (Optional)	Overall Power Consumption	3.5KW(2000W)/5.5KW(3000W)/8KW(4000W)/10KW(6000W)
Dimensions	L1343xW1454xH22235mm	Machine Weight	Approx. 500KG

Product Details

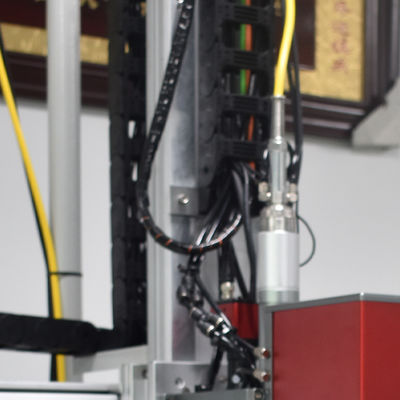

Welding Point Monitoring & Autofocus System

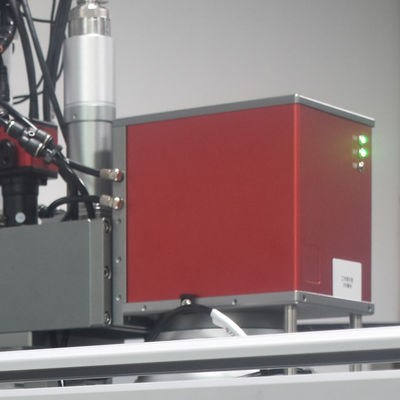

High Precision Welding Joint of Vibrating Mirror

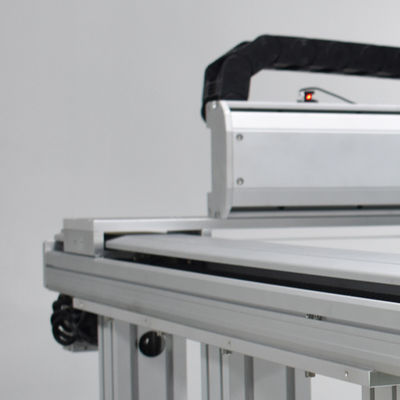

Rail Module

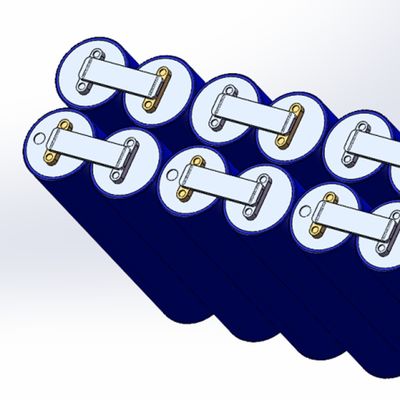

Welding Product Diagram

Frequently Asked Questions

Q: How do I know which model is right for my application?

A: Please provide: 1) Battery model and type, 2) Welding materials and thickness. Our experienced team will recommend the optimal solution.

Q: What is required for machine installation and operation?

A: Our technicians pre-install all major components before shipping. We provide detailed training videos and manuals for minor assembly. 95% of customers successfully self-install.

Q: Is there a minimum order quantity?

A: No MOQ requirements. We provide full support whether you need 1 unit or 100 units.

Q: How is quality controlled in your factory?

A: Each unit undergoes 20+ rigorous tests. Our QC team verifies all welding performance before shipment.

Q: What if I encounter technical issues?

A: Contact us immediately - do not attempt repairs. We guarantee 24-hour response to resolve any issues.
