| Brand Name: | CHEEO |
| MOQ: | 1 |
| 価格: | $10,000-11,000 |

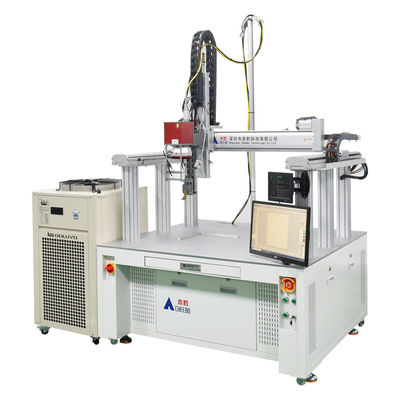

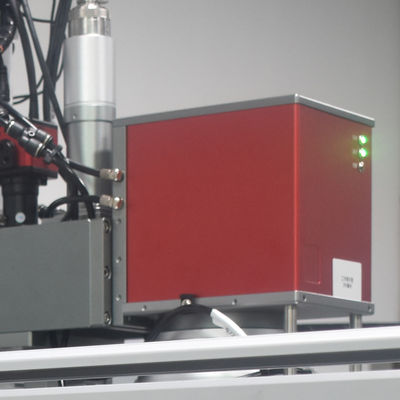

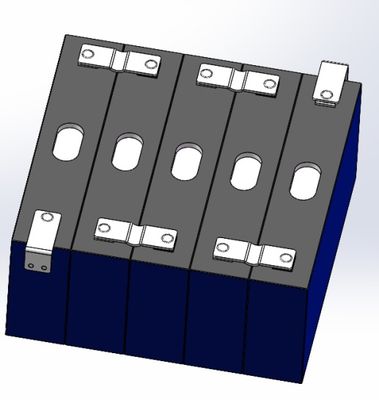

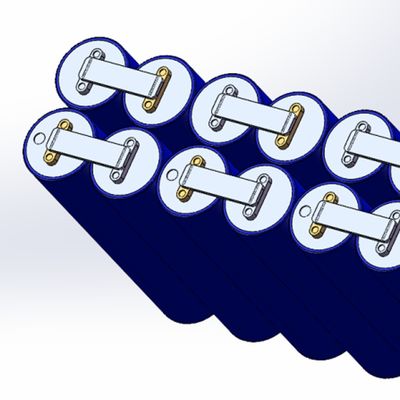

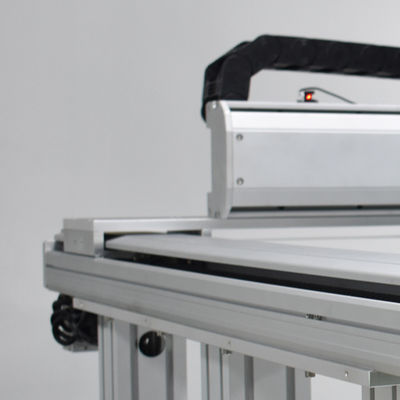

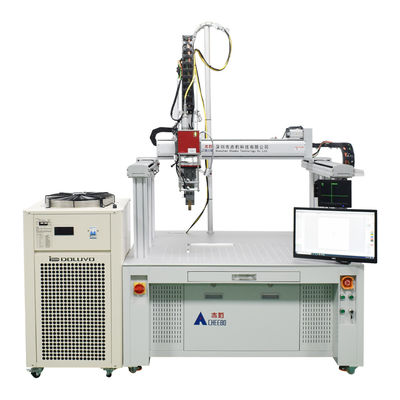

This advanced laser welding platform integrates fiber optic continuous laser, gantry motion structure, high-power mirror welding head, water cooling system, and PC control system. Capable of welding any planar geometric shape including points, lines, and circles, it delivers efficient, safe, and stable high-power fiber laser welding performance ideal for lithium battery applications.
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Laser power | 1500W/2000W/3000W/4000W/6000W | Welding speed | 10-100mm/s |
| Position accuracy | ±0.05mm | Laser Wavelength | 1080 |
| Regulating frequency | 30-5KHZ | Adjustable power range | 10-100% |
| Repositioning Accuracy | ±0.01mm | Rapid positioning accuracy | 1000mm/sec(XY axis), 500mm/sec(Z axis) |
| Coolant system | External water cooling | Operating mode | Continuous/Modulation |
| Beam Quality | <1.4㎡ | Power stability | ≦3% |
| Laser light output mode | CW/PWM | Laser power adjustment range | 1-100 |
| Laser focusing focal length | F=180mm | CCD positioning accuracy | 0.01mm(Optional) |
| Maximum machining size | 800*600mm/1000*800 | Ambient temperature | 5-45℃ |
| Fiber core | 20um/50pm/100pm(Optional) | Overall Power Consumption | 3.5KW(2000W)/5.5KW(3000W)/8KW(4000W)/10KW(6000W) |
| Overall dimension | L1343xW1454xH22235mm | Machine weight | About 500KG |
|
|
