| Brand Name: | CHEEO |
| MOQ: | 1 |
| 価格: | $10,000-11,000 |

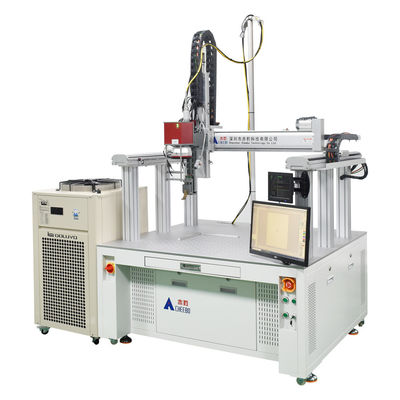

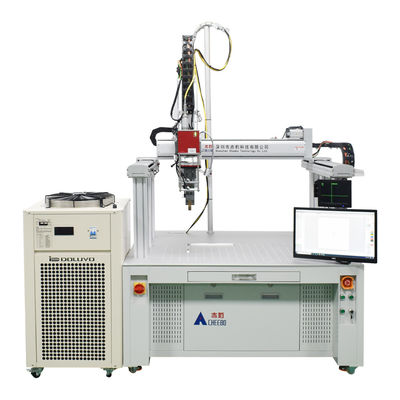

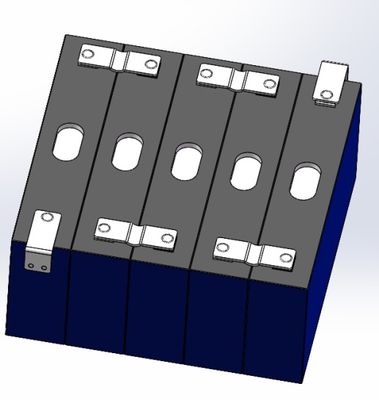

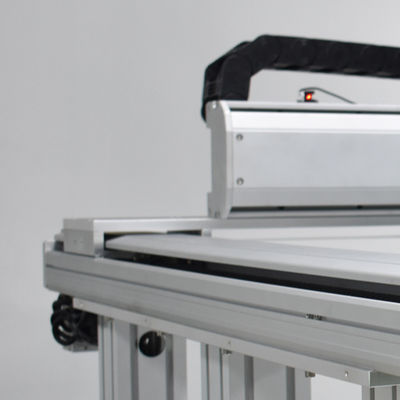

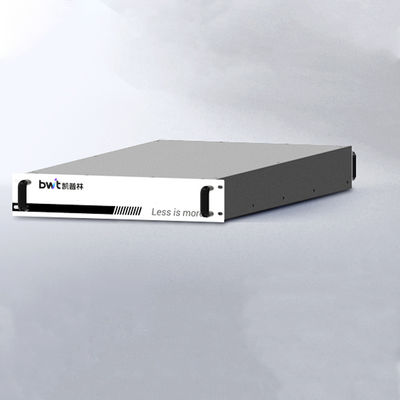

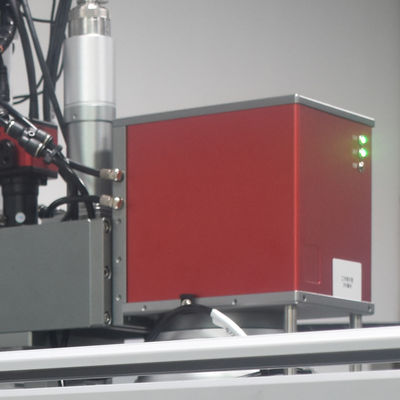

This high-performance fiber laser welding machine integrates key components including fiber optic continuous laser, gantry motion structure, high-power mirror welding head, water cooling system, and PC control system. Capable of welding any planar geometric shape trajectory (points, lines, circles), it delivers efficient, safe, and stable performance, particularly for lithium battery welding applications.
| Laser Power | 1500W/2000W/3000W/4000W/6000W | Welding Speed | 10-100mm/s |
|---|---|---|---|
| Position Accuracy | ±0.05mm | Laser Wavelength | 1080 |
| Regulating Frequency | 30-5KHZ | Adjustable Power Range | 10-100% |
| Repositioning Accuracy | ±0.01mm | Rapid Positioning Accuracy | 1000mm/sec(XY axis), 500mm/sec(Z axis) |
| Coolant System | External water cooling | Operating Mode | Continuous/Modulation |
| Beam Quality | <1.4㎡ | Power Stability | ≦3% |
| Laser Output Mode | CW/PWM | Laser Power Adjustment Range | 1-100 |
| Laser Focusing Focal Length | F=180mm | CCD Positioning Accuracy | 0.01mm (Optional) |
| Maximum Machining Size | 800*600mm/1000*800 | Ambient Temperature | 5-45℃ |
| Fiber Core | 20um/50pm/100pm (Optional) | Overall Power Consumption | 3.5KW(2000W)/5.5KW(3000W)/8KW(4000W)/10KW(6000W) |
| Overall Dimension | L1343xW1454xH22235mm | Machine Weight | About 500KG |
|
|
