6000W High Precision Battery Pack Laser Welding Machine with 3 Years Warranty for Lithium Ion Battery Welding

Brand Name:	CHEEO
MOQ:	1
価格:	$10,000-11,000

Detail Information

Product Description

Detail Information

起源の場所:

中国広州

出力電力:

6000W

レーザー波長:

1080

溶接速度:

10〜100mm/s

位置の精度:

±0.05mm

再配置精度:

±0.01mm

迅速な位置決め速度:

1000mm/sec（xy軸）、500mm/秒（z軸）

ビーム品質:

<1.4㎡

電力安定性:

≦3％

焦点距離のレーザー焦点:

F=180mm

最高の機械化のサイズ:

800*600mm/1000*800

周囲温度:

5-45℃

全面的なパワー消費量:

3.5kw（2000w）、5.5kw（3000w）、8kw（4000w）、10kw（6000w）

全体的な次元:

L1343XW1454XH22235mm

機械重量:

500 kg

ファイバーコア:

20um/50pm/100pm（オプション）

ハイライト:

6000W Battery Pack Laser Welding Machine

High Precision Lithium Ion Battery Laser Welder

3 Years Warranty Fiber Laser Welding Equipment

Product Description

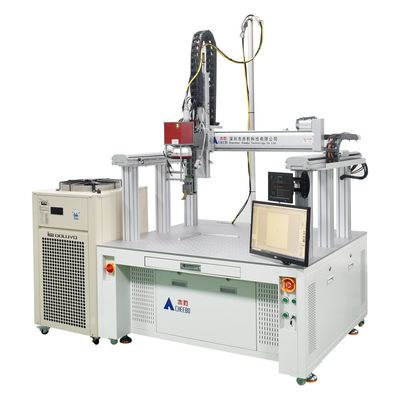

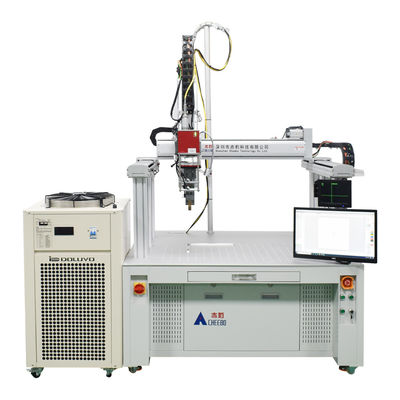

Battery Pack Laser Welding Machine (2000W-6000W)

This high-performance fiber laser welding machine integrates advanced components including fiber optic continuous laser, gantry motion structure, high-power mirror welding head, water cooling system, and PC control system. Capable of welding any planar geometric shape trajectory (points, lines, circles), it delivers exceptional performance for lithium battery welding applications.

Key Features

Advanced fiber laser source optimized for high reflective materials (aluminum)
Patented gantry machine tool design for superior rigidity and stability
High-precision guide rail transmission with servo motors for fast, accurate welding
Fine laser spots with deep melting depth and minimal taper
PC industrial computer with user-friendly CNC programming system
Adjustable laser power with low power consumption and minimal maintenance
Optional CCD visual positioning and automatic focal length measurement systems
Automatic top pressure welding device reduces fixture requirements

Technical Specifications

Laser Power	1500W/2000W/3000W/4000W/6000W	Welding Speed	10-100mm/s
Position Accuracy	±0.05mm	Laser Wavelength	1080nm
Regulating Frequency	30-5KHZ	Power Adjustment Range	10-100%
Repositioning Accuracy	±0.01mm	Rapid Positioning Speed	1000mm/sec (XY), 500mm/sec (Z)
Cooling System	External water cooling	Operating Mode	Continuous/Modulation
Beam Quality	<1.4㎡	Power Stability	≤3%
Maximum Machining Size	800×600mm/1000×800mm	Machine Weight	Approx. 500KG

System Components

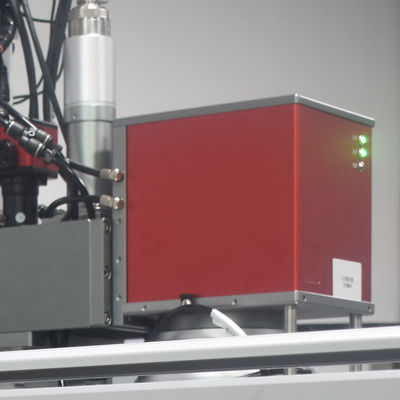

Welding Point Monitoring, Autofocus

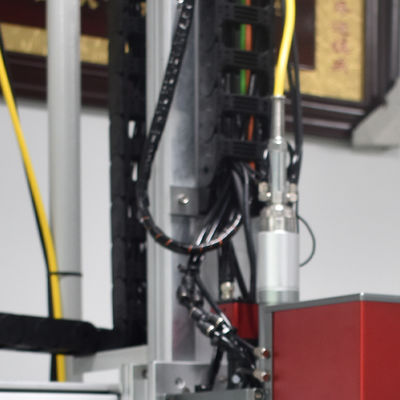

High Precision Welding Joint

Rail Module

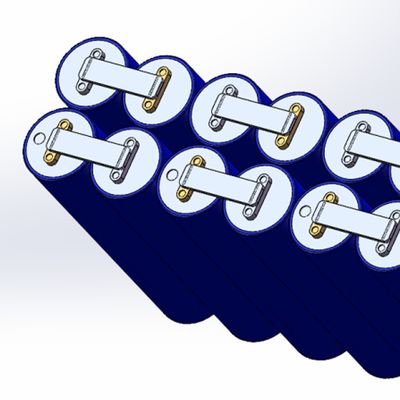

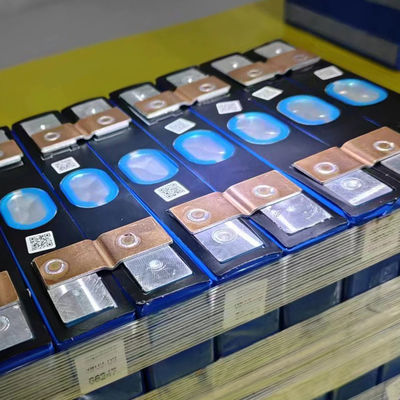

Welding Product Examples

Frequently Asked Questions

Q: How do I select the right model for my needs?

A: Please provide your battery model/type and welding material/thickness specifications. Our experienced team will recommend the optimal configuration.

Q: What support is provided for machine installation?

A: Machines are pre-installed before shipping. We provide detailed training videos and manuals for final setup - 95% of customers successfully self-install.

Q: What is your minimum order quantity?

A: No MOQ requirements - we support orders of any size with equal dedication.

Q: How is quality controlled?

A: Each unit undergoes 20+ rigorous tests, including final welding performance verification by our QC team.

Q: What if I encounter technical issues?

A: Contact us immediately - our support team responds within 24 hours. Never attempt unauthorized repairs.
