電池レーザー溶接機

6000W Battery Laser Welding Machine with 3 Years Warranty for High Precision Battery Welding

All Category

電池の付属品

連絡ください

Ms. Naomi Zhang

cheebo@126.com

+86 199 2880 7536

Contact Now

6000W Battery Laser Welding Machine with 3 Years Warranty for High Precision Battery Welding

Brand Name:	CHEEO
MOQ:	1
価格:	$10,000-11,000

Detail Information

Product Description

Detail Information

起源の場所:

中国広州

出力電力:

6000W

レーザーパワー:

1500W/2000W/3000W/4000W/6000W

溶接速度:

10〜100mm/s

位置の精度:

±0.05mm

レーザー波長:

1080

調整周波数:

30-5kHz

調整可能な電力範囲:

10~100%

再配置精度:

±0.01mm

迅速な位置付け精度:

1000mm/sec（xyaxis）、500mm/秒（Zaxis）

ビーム品質:

<1.4㎡

電力安定性:

≦3％

焦点距離のレーザー焦点:

F=180mm

最高の機械化のサイズ:

800*600mm/1000*800

全面的なパワー消費量:

3.5KW ((2000W) /5.5KW ((3000W) /8KW ((4000W) /10KW ((6000W)

全体的な次元:

L1343XW1454XH22235mm

ハイライト:

6000W Battery Laser Welding Machine

3 Years Warranty Laser Welding Equipment

Battery welding Fiber Laser Welding Machine

Product Description

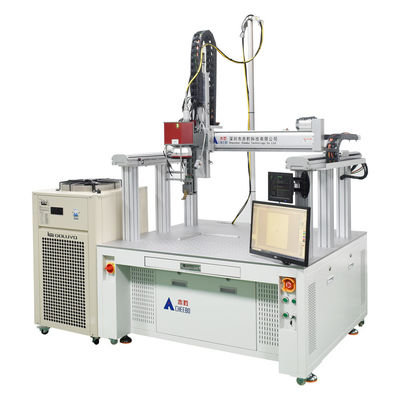

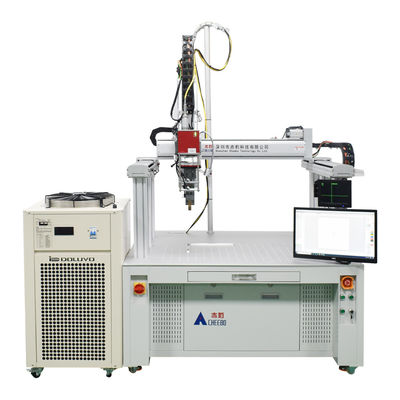

18650 Battery Case Pack Laser Welding Machine

This high-power fiber laser welding machine integrates fiber optic continuous laser, gantry motion structure, high-power mirror welding head, water cooling system, and PC control system. Capable of welding any planar geometric shape trajectory (points, lines, circles), it delivers exceptional performance for lithium battery welding processes.

Key Features:

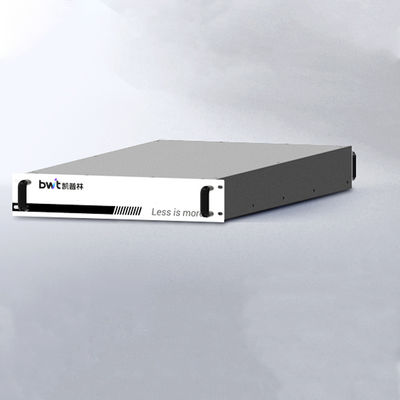

Advanced fiber laser source specifically designed for high reflective materials (aluminum)
Gantry machine tool with excellent rigidity and stability
High beam quality, stability, reliability, and low operating costs
Precision guide rail transmission with high-response servo motors
Fine welding spots with high melting depth and minimal taper
PC industrial computer with user-friendly CNC programming system
Adjustable laser power with low power consumption
Automatic top pressure welding device reduces fixture requirements
Optional CCD visual positioning and automatic focal length measurement systems

Technical Specifications:

Laser power	1500W/2000W/3000W/4000W/6000W	Welding speed	10-100mm/s
Position accuracy	±0.05mm	Laser Wavelength	1080
Regulating frequency	30-5KHZ	Adjustable power range	10-100%
Repositioning Accuracy	±0.01mm	Rapid positioning accuracy	1000mm/sec(XY axis), 500mm/sec(Z axis)
Coolant system	External water cooling	Operating mode	Continuous/Modulation
Beam Quality	<1.4㎡	Power stability	≦3%
Laser light output mode	CW/PWM	Laser power adjustment range	1-100
Laser focusing focal length	F=180mm	CCD positioning accuracy	0.01mm(Optional)
Maximum machining size	800600mm/1000800	Ambient temperature	5-45℃
Fiber core	20um/50pm/100pm(Optional)	Overall Power Consumption	3.5KW(2000W)/5.5KW(3000W)/8KW(4000W)/10KW(6000W)
Overall dimension	L1343xW1454xH22235mm	Machine weight	About 500KG

Product Details

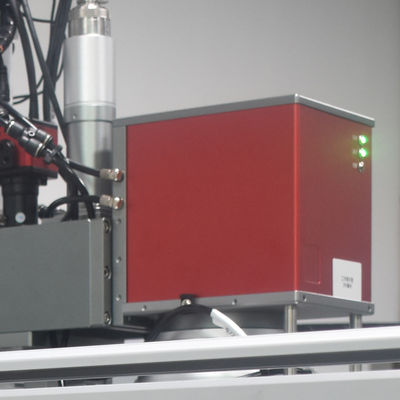

Welding Point Monitoring, Autofocus

High Precision Welding Joint of Vibrating Mirror

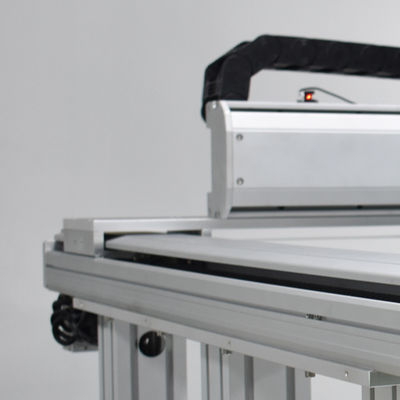

Rail Module

Welding Product Diagram

Frequently Asked Questions

Q: I don't know which model suits my needs?

A: Please provide your battery model/type and welding materials/thickness. Our experienced team will recommend the best solution.

Q: How to install and operate the machine?

A: Our technicians pre-install the machine before shipping. We provide detailed training videos and manuals - 95% of customers can self-learn.

Q: What is your minimum order quantity?

A: No minimum order quantity - we support orders from 1 to 100+ units.

Q: How is your quality control?

A: Each unit undergoes 20+ tests. Our QC team verifies welding performance before shipment.

Q: What if I encounter machine problems?

A: Contact us immediately - don't attempt repairs. We respond within 24 hours to resolve issues.
