電池レーザー溶接機

6000W 3 in 1 Laser Welding Machine with 1080 Wavelength and 3 Years Warranty for High Precision Lithium Battery Welding

All Category

電池の付属品

連絡ください

Ms. Naomi Zhang

cheebo@126.com

+86 199 2880 7536

Contact Now

6000W 3 in 1 Laser Welding Machine with 1080 Wavelength and 3 Years Warranty for High Precision Lithium Battery Welding

Brand Name:	CHEEO
MOQ:	1
価格:	$10,000-11,000

Detail Information

Product Description

Detail Information

起源の場所:

中国広州

出力電力:

6000W

波長:

1080

重さ:

500 kg

レーザーパワー:

1500W/2000W/3000W/4000W/6000W

溶接速度:

10〜100mm/s

位置の精度:

±0.05mm

調整周波数:

30-5kHz

調整可能な電力範囲:

10~100%

再配置精度:

±0.01mm

迅速な位置付け精度:

1000mm/sec（xyaxis）、500mm/秒（Zaxis）

ビーム品質:

<1.4㎡

電力安定性:

≦3％

焦点距離のレーザー焦点:

F=180mm

最高の機械化のサイズ:

800*600mm/1000*800

全体的な次元:

L1343XW1454XH22235mm

ハイライト:

6000W Laser Welding Machine

1080 Wavelength Laser Welding Machine

3 Years Warranty Laser Welding Machine

Product Description

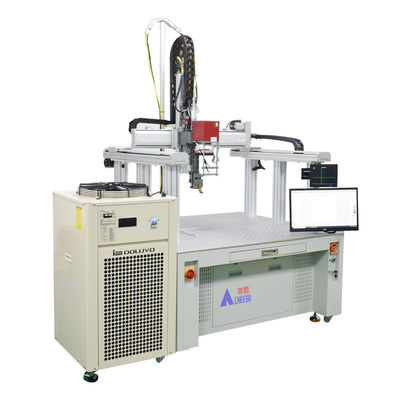

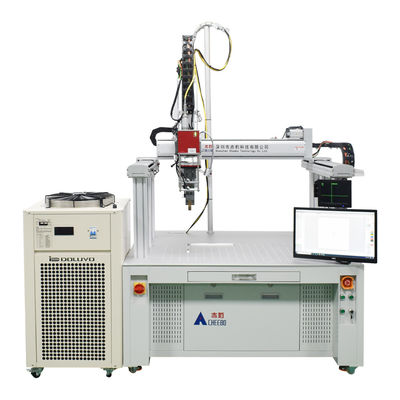

High Quality 3 in 1 Laser Welding Cleaning Cutting Machine

This advanced fiber laser welding machine integrates key components including fiber optic continuous laser, gantry motion structure, high-power mirror welding head, water cooling system, and PC control system. Capable of welding any planar geometric shape (points, lines, circles), it delivers efficient, safe, and stable high-power performance, particularly effective for lithium battery welding processes.

Key Features

Utilizes advanced fiber laser technology specifically designed for high reflective materials (aluminum)
Combined with our proprietary gantry machine tool design for exceptional rigidity and stability
High beam quality with stable, reliable performance and low operating costs
Precision guide rail transmission with high-response servo motors for accuracy and speed
Fine welding spots with deep melting depth, minimal taper, and smooth surface finish
PC industrial computer with user-friendly CNC programming system
Adjustable laser power with low power consumption and minimal maintenance
Optional CCD visual positioning system and automatic focal length measurement

Technical Specifications

Laser Power	1500W/2000W/3000W/4000W/6000W
Welding Speed	10-100mm/s
Position Accuracy	±0.05mm
Laser Wavelength	1080
Regulating Frequency	30-5KHZ
Adjustable Power Range	10-100%
Repositioning Accuracy	±0.01mm
Coolant System	External water cooling
Beam Quality	<1.4㎡
Maximum Machining Size	800600mm/1000800
Overall Power Consumption	3.5KW(2000W)/5.5KW(3000W)/8KW(4000W)/10KW(6000W)
Dimensions	L1343xW1454xH22235mm
Weight	Approx. 500KG

Product Images

Frequently Asked Questions

Q: How do I know which model suits my needs?

A: Please provide your battery model/type and welding materials/thickness. Our experienced team will recommend the optimal solution.

Q: What's included in machine installation?

A: Our technicians pre-install machines before shipping. We include detailed training videos and manuals - 95% of customers can self-install remaining components.

Q: Is there a minimum order quantity?

A: No MOQ - we fully support orders from 1 to 100+ units.

Q: How is quality controlled?

A: Each unit undergoes 20+ rigorous tests. Our QC team verifies welding performance after all tests pass.

Q: What if I encounter technical issues?

A: Contact us immediately - don't attempt repairs. We guarantee 24-hour response to resolve any problems.
