6000W Output Power Battery Laser Welding Machine with 1080 Wavelength and 3 Years Warranty

Brand Name:	CHEEO
MOQ:	1
価格:	$10,000-11,000

Detail Information

Product Description

Detail Information

起源の場所:

中国広州

出力電力:

6000W

レーザー波長:

1080

重さ:

500 kg

レーザーパワー:

1500W/2000W/3000W/4000W/6000W

溶接速度:

10〜100mm/s

位置の精度:

±0.05mm

調整周波数:

30-5kHz

調整可能な電力範囲:

10~100%

再配置精度:

±0.01mm

迅速な位置付け精度:

1000mm/sec（xyaxis）、500mm/秒（Zaxis）

ビーム品質:

<1.4㎡

電力安定性:

≦3％

焦点距離のレーザー焦点:

F=180mm

最高の機械化のサイズ:

800*600mm/1000*800

全体的な次元:

L1343XW1454XH22235mm

ハイライト:

6000W Output Power Battery Laser Welding Machine

1080 Wavelength Laser Welding Platform

3 Years Warranty Fiber Laser Welder

Product Description

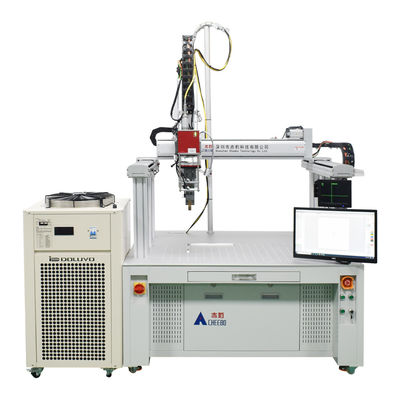

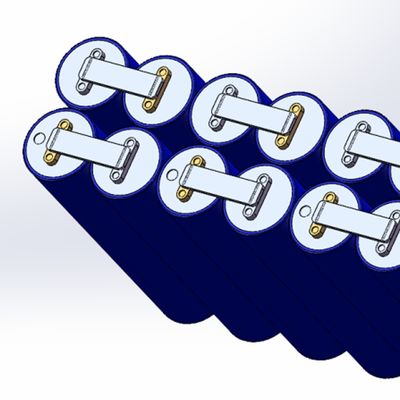

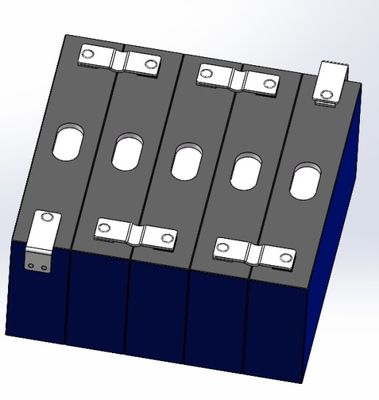

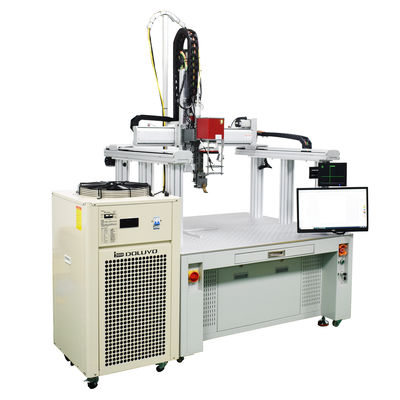

Square Lithium Battery 18650 Battery Laser Welding Fully Automatic Platform

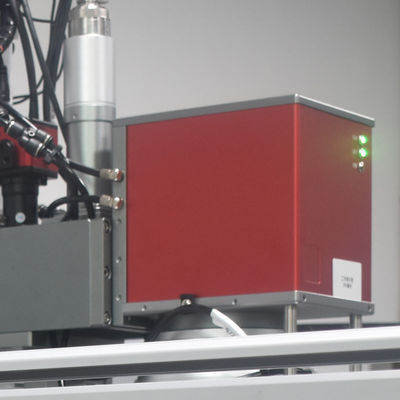

This high-performance fiber laser welding machine integrates critical components including fiber optic continuous laser, gantry motion structure, high-power mirror welding head, water cooling system, and PC control system. Capable of executing precise welds in various planar geometric shapes (points, lines, circles), it delivers exceptional performance for lithium battery welding applications.

Key Features

Advanced fiber laser source optimized for high reflective materials (aluminum)
Proprietary gantry machine tool design for superior rigidity and stability
High beam quality with excellent stability, reliability, and low operating costs

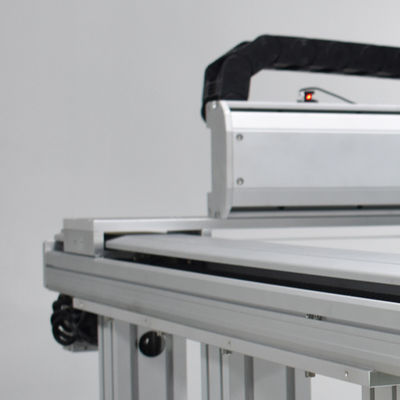

High-precision gantry dual-drive motion platform with large welding range
Precision guide rail transmission with high-response servo motors
Fine weld spots with deep penetration, minimal taper, and smooth surfaces
PC industrial computer with user-friendly CNC programming system
Adjustable laser power with low energy consumption and minimal maintenance
Optional CCD visual positioning and automatic focal length measurement systems

Technical Specifications

Laser Power	1500W/2000W/3000W/4000W/6000W	Welding Speed	10-100mm/s
Position Accuracy	±0.05mm	Laser Wavelength	1080
Regulating Frequency	30-5KHZ	Adjustable Power Range	10-100%
Repositioning Accuracy	±0.01mm	Rapid Positioning Speed	1000mm/sec (XY axis), 500mm/sec (Z axis)
Coolant System	External water cooling	Operating Mode	Continuous/Modulation
Beam Quality	<1.4㎡	Power Stability	≦3%
Laser Output Mode	CW/PWM	Maximum Machining Size	800600mm/1000800mm
Laser Focusing Focal Length	F=180mm	Ambient Temperature	5-45℃
Fiber Core	20um/50pm/100pm (Optional)	Overall Power Consumption	3.5KW(2000W)/5.5KW(3000W)/8KW(4000W)/10KW(6000W)
Dimensions	L1343xW1454xH22235mm	Machine Weight	About 500KG

Product Images

Frequently Asked Questions

Q: How do I know which model is right for my application?

A: Please provide us with: 1) Your battery model and type, and 2) Welding materials and thickness. Our experienced team can recommend the optimal solution.

Q: What's included in machine installation?

A: Our technicians pre-install the machine before shipping. We include detailed training videos and user manuals for minor component setup - 95% of customers can self-install.

Q: Is there a minimum order quantity?

A: No MOQ requirements. We provide full support whether you need 1 unit or 100 units.

Q: How do you ensure product quality?

A: Each unit undergoes 20+ rigorous tests. Our QC team verifies all welding performance parameters before shipment.

Q: What if I encounter technical issues?

A: Contact us immediately - do not attempt repairs yourself. We guarantee a response within 24 hours to resolve any issues.
